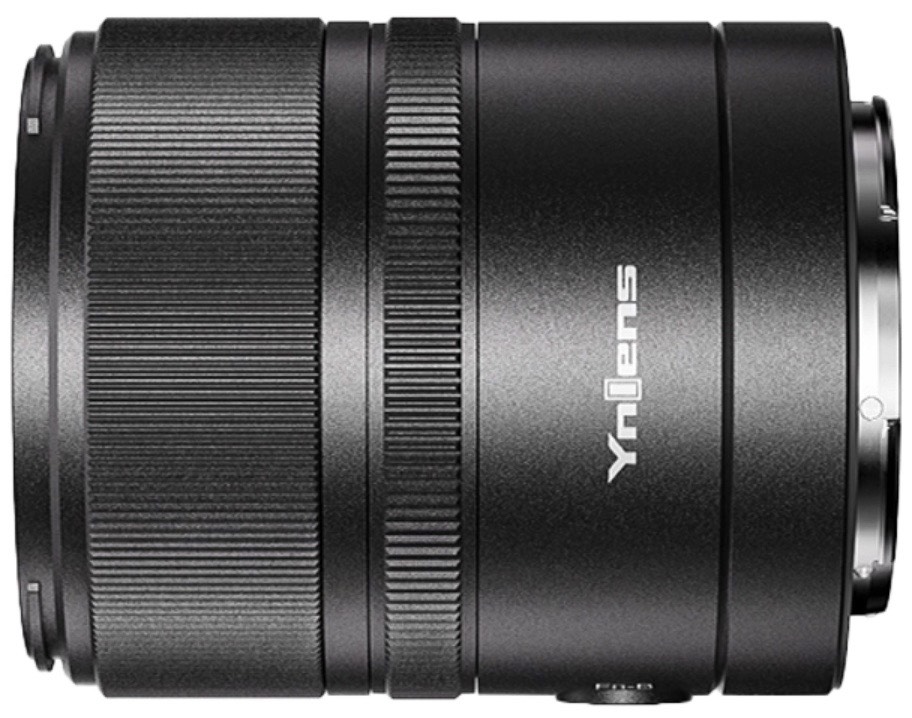

Yongnuo 23mm f/1.4 DA DSM WL Pro Lens Specifications

bythom yongnuo 23

A low-cost autofocus wide-angle lens

  • Coverage: APS-C frame (DX)
  • Angle of View: 65.4° diagonal
  • Optical Design:
    • 11 elements in 9 groups
    • 4 high refractive, 3 ultra-low dispersion elements
    • fluorine front coating
  • Aperture:
    • f/1.8 to f/16
    • no aperture ring
    • 9-blade diaphragm
  • Filters: 58mm front filter ring
  • Image Stabilization: None, use sensor VR
  • Focus:
    • Autofocus
    • Internal focus
    • Stepping motor
    • 7” (0.3m) minimum focus
    • 1:10 maximum magnification ratio
    • no DOF markings
  • Size and Weight:
    • 2.7” (69mm) long
    • 2.5” (64mm) diameter
    • 9.6 ounces (273g) weight
  • Other:
    • USB port for downloading new firmware to lens
    • wireless remote control
    • dust and splash proof build
    • L-Fn button
    • AF/MF switch
    • Included lens hood
  • Black
  • Price: US$288
  • Announced: September 12, 2022
